Commutator Turning
| Diamond tools are used for turning the commutators of
fractional horsepower electric motors, such as motors used for vacuum cleaners,
electric power tools, etc.
The tool is traversed at a feed rate of .0005 to .0015
per revolution, taking a depth of cut from .001 to .005. A
controlled finish can be produced. |
|

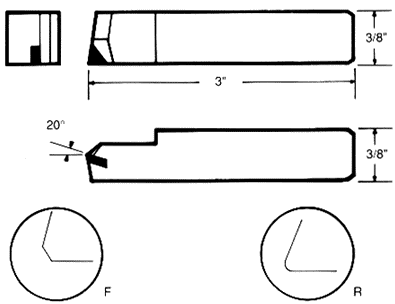

Tool type
|
CT-N-F
|
Natural diamond with flat |
|
CT-N-R
|
Natural diamond with radius |
|
CT-S-F
|
Synthetic diamond with flats |
|
CT-S-R
|
Synthetic diamond with radius |
Custom-made tools to your specifications quoted on request |
