Prism Grinding Wheel Dressers


Prism Grinding Wheel Dressers - are manufactured using high quality synthetic diamonds which are precision laser cut into long, thin prisms. They are ideal for all kinds of grinding wheels, including CBN and ceramic. Predictable Consistent Performance
Diamonds are low in impurities, have excellent fracture resistance and are of consistent size. Do to the uniform size and length, the Prism Grinding Wheel Dressers maintain the same format throughout the length of the diamonds.
Versatile
Available in various sizes of prisms, various shank sizes, 1-7 stone configuration and prism lengths .120 and .240. The Prism stones are oriented so that they provide a uniform dressing width.
Economical
All Diamond tool Prism wheel dressers are set in our vacuum furnace which fuses the diamond to the steel. This assures that all the diamonds are consumed completely and will not loosen or pull out.


Shank Style
Shank Sizes
Diamond Size
Blade Size
Number of Diamonds
Order Information

Style Selection
Standard Prism Dresser

Prism Modular Dresser

Cluster Prism Dresser

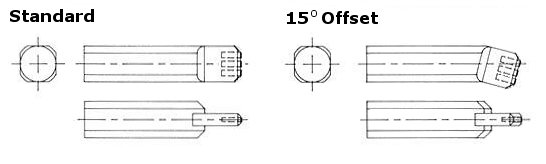

SHANK STYLE
STANDARD SHANK SIZES AVAILABLE
Standard
3/8 x 1-1/4 or 7/16 x 1-1/4
Offset (15o)
3/8 x 1-1/4 or 7/16 x 1-1/4

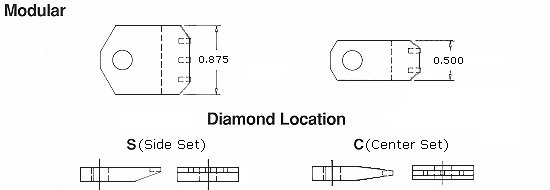

Modular
7/8 x 1-1/8 or 1/2 x 1-1/8
Cluster
7/16 x 1-1/2 OAL with head
Special shank sizes available upon request.
Diamond Size Available
#24 #32 #44
Prism Dresser Prism Dresser Prism Dresser
.024 x .024 x .120 .032 x .032 x .120 .044 x .044 x .120
GRIT SIZE OF WHEEL RECOMMENDED DIAMOND SIZE
120 24
80 24 or 32
60 24 or 32
36 32 or 44
Blade Size Selection
JM-1 JM-2 JM-3
Prism Dresser
Prism Dresser
Prism Dresser
JM-4 JM-5
Prism Dresser
Prism Dresser
Special blade sizes available on request.
Ordering Information
STYLE SPECIFY
Standard
  • Shank size
  • Blade Size
  • Number of Diamond
  • Size of Diamond
Offset
  • Shank Size
  • Blade Size
  • Number of Diamonds
  • Size of Diamonds
Modular
  • Shank Size
  • Number of Diamonds
  • Size of Diamonds
  • Location - Center Set of Side Set
Cluster
  • Number of Diamonds 3, 5 or 7
  • Size of Diamonds
Recommended Number of Diamonds
WHEEL WIDTH WHEEL DIAMETER

4"
6"
8"
10"
12"
14"
16"
18"
20"
24"
1/2"
1

2

3

3
4
4
5
1"
1
2

3

3

4

5
1-1/2"

3

3

4

5

2"
2

3

3

4
5
5
2-1/2"

3

3

3

3"

3

4

4

5

4"

5

All dimensions are in inches.


Ask about custom styles and shank sizes for any straight or contoured dressing application.
