Single Point Natural Dressers


J&M Diamond Tool single point natural diamond dressers are manufactured in the US at our East Providence Rhode Island facilities.
Diamond Example General Purpose Diamond Diamond Example Select Diamond Diamond Example Premium Diamond
General Purpose Select Premium

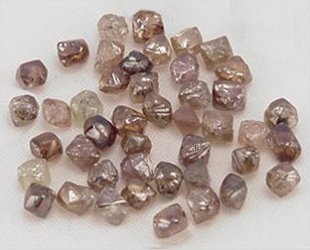

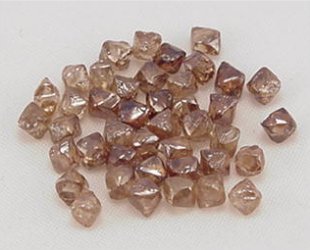

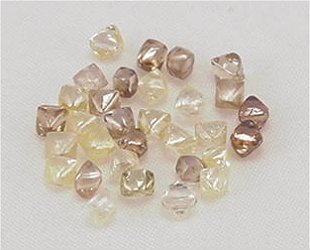

General Purpose stones, although in some cases may be reset, are referred to as "throw aways". These are lesser quality stones than Select or Premium diamonds and therefore have less dressing time expectancy.  Select diamonds are better then General Purpose stones but are less expensive than Premium because they have fewer cutting edges. Select stones approximate Premium quality, but have fewer points and therefore cannot be reset as many times. Premium diamonds are specially selected diamonds for their shape and structure. These diamonds, because of their many points, may be reset several times which more than pays for the higher cost.
General Purpose Diamond Select Diamonds Premium Diamonds
Click on Above Diamond Group for a larger Picture

J&M Diamond Dresser Single Point Dresser 7-16 by 2"
STYLE "A" = 7/16" by 2"
Carat  Select Size Select Size Select Size
Weight General Purpose Select Premium Qty
1/4 ct.
1/4 ct.   GP   $24.00 1/4 ct.    SE   $37.75 1/4 ct.    PR     $73.50
1/3 ct.
1/3 ct.    GP   $27.00 1/3 ct.    SE   $45.50 1/3 ct.    PR     $84.75
1/2 ct.
1/2 ct.    GP   $36.75 1/2 ct.    SE   $69.00 1/2 ct.    PR     $108.50
3/4 ct.
3/4 ct.    GP   $48.75 3/4 ct.    SE   $101.50 3/4 ct.    PR   $168.25
1 ct.
1 ct.       GP  $68.50 1 ct.       SE $159.50 1 ct.       PR  $239.25
1-1/2 ct.
1-1/2 ct. GP   $100.00 1-1/2 ct. SE $256.00 1-1/2 ct. PR  $455.50
2 ct.
2 ct.      GP  $133.50 2 ct.       SE $300.00 2 ct. PR Quote on Request
3 ct.
3 ct.      GP  $182.50 3 ct.       SE $403.00 3 ct. PR Quote on Request




Single Point Diamond Dresser
Single Point Diamond Dresser
STYLE "A" = 3/8" by 2"
Shank required for 3 ct Dresser
Carat  Select Size Select Size Select Size
Weight General Purpose Select Premium Qty
1/4 ct.
1/4 ct.   GP   $24.00 1/4 ct.    SE   $37.75 1/4 ct.    PR     $73.50
1/3 ct.
1/3 ct.    GP   $27.00 1/3 ct.    SE   $45.50 1/3 ct.    PR     $84.75
1/2 ct.
1/2 ct.    GP   $36.75 1/2 ct.    SE   $69.00 1/2 ct.    PR     $108.50
3/4 ct.
3/4 ct.    GP   $48.75 3/4 ct.    SE   $101.50 3/4 ct.    PR   $168.25
1 ct.
1 ct.       GP  $68.50 1 ct.       SE $159.50 1 ct.       PR  $239.25
1-1/2 ct.
1-1/2 ct. GP   $100.00 1-1/2 ct. SE $256.00 1-1/2 ct. PR  $455.50
2 ct.
2 ct.      GP  $133.50 2 ct.       SE $300.00 2 ct. PR Quote on Request
3 ct.
3 ct.      GP  $182.50 3 ct.       SE $403.00 3 ct. PR Quote on Request




J&M Diamond Dresser Single Point Dresser style B
STYLE "B" = 7/16" by 1-5/8"
Carat  Select Size Select Size Select Size
Weight General Purpose Select Premium Qty
1/4 ct.
1/4 ct.   GP   $26.00 1/4 ct.    SE   $39.75 1/4 ct.    PR     $75.50
1/3 ct.
1/3 ct.    GP   $29.00 1/3 ct.    SE   $47.50 1/3 ct.    PR     $86.75
1/2 ct.
1/2 ct.    GP   $38.75 1/2 ct.    SE   $71.00 1/2 ct.    PR     $110.50
3/4 ct.
3/4 ct.    GP   $50.75 3/4 ct.    SE   $103.50 3/4 ct.    PR   $170.25
1 ct.
1 ct.       GP  $70.50 1 ct.       SE $161.50 1 ct.       PR  $241.25
1-1/2 ct.
1-1/2 ct. GP   $102.00 1-1/2 ct. SE $258.00 1-1/2 ct. PR  $457.50
2 ct.
2 ct.      GP  $135.50 2 ct.       SE $302.00 2 ct. PR Quote on Request
3 ct.
3 ct.      GP  $184.50 3 ct.       SE $405.00 3 ct. PR Quote on Request



POINT SIZE SELECTION CHART
Wheel Diameter
in inches or less
Wheel Diamond
Width Carat Size
Wheel Diamond
Width Carat Size
Wheel Diamond
Width Carat Size
4” 1/2"-1" 0.25 2-1/4" 0.33
6" 1" 0.33 2-1/2" 0.5
8" 1/2" 0.33 1-1/2" 0.5 3" 0.75
10" 1" 0.5 2-1/4" 0.75 2-1/2" 0.75
12" 1/2" 0.75 1-1/2" 0.75 3" 1
14" 1" 0.75 2-1/4" 1 2-1/2" 1
16" 1/2" 0.75 1-1/2" 1 3" 1.5
18" 1/2" 1 1" 1.25 2-1/4" 1.5
20" 1-1/2" 1.5 1-75" 1.75 3" 2
24" 1" 1.5 2-1/4" 2 4" 3
POINT SIZE SELECTION CHART - Shows optimum size diamond point (carats) for various combinations of wheel diameter and width.
